Accessories for Automatic Cement Compression and Flexure Testing Machines

Category
Sub Category
Product Code
CM3570
Quantity in Stock
qty
Price
Ask Price
Ask Price

The Accessories are used with automatic cement compression and flexure testing machines.

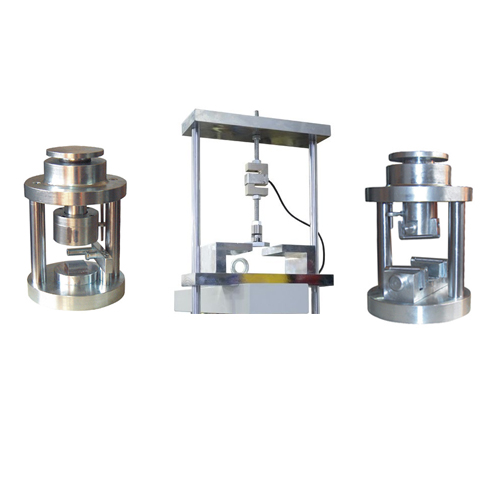

Compression Devices
Compression Devices are used with cement compression machine for 50 mm (2”) cube moulds. Robust frame fitted with an upper bearer that moves vertically supported by springs. One of the two lower bearer can tilt horizontally and the distance between the two bearers is 100 mm for the EN model and 119 mm for the ASTM model. Total height is 188 mm,Weight approx.: 8 kg
Flexural Devices
Flexural Devices are used with cement flexural machine for 40*40*160 mm prism moulds. Robust frame fitted with an upper bearer that moves vertically supported by springs. One of the two lower bearer can tilt horizontally and the distance between the two bearers is 100 mm for the EN model and 119 mm for the ASTM model. Total height is 188 mm,Weight approx.: 8 kg
Tensile Adhesion Strength Test
C3450 Tensile Adhesion Strength Test can be fitted to the Cement Compression or Compression / Tension testing machines. This apparatus is supplied complete with 5 kN load cell and should be installed at our factory.
C3452 Pull-Headed Plate Set consists of 6 pcs. metal plates with a fitting for connection to the test machine. The plates are 50x50 mm edged and 10 mm thickness.
C3454 Pull Headed Plate Set consists of 6 pcs. stainless steel plates with a fitting for connection to the test machine. The plates 50 mm dia. and 20 mm thickness.
C3456 Frusto-Conical Shaped Ring is 50mm dia. and stainless steel.

.









C3440 - Compression Jig Assembly to test 50 mm (2”) mortar cubes, ASTM
C3442 - Compression Jig Assembly to test portions of 40x40x160 mm mortar prisms, EN
C3444 - Compression Jig Assembly BS, to test 70,7 mm mortar cubes
C3446 - Flexure Jig Assembly to test 40x40x160 mm mortar prisms, ASTM
C3448 - Flexure Jig Assembly to test 40x40x160 mm mortar prisms, EN
C3450 - Tensile Adhesion Strength Test Apparatus, 5 kN, EN 1348
C3452 - Pull Headed Plate Set, EN 1348
C3454 - Pull Headed Plate Set, EN 1015-12
C3456 - Frusto-Conical Shaped Ring, EN 1015-12
