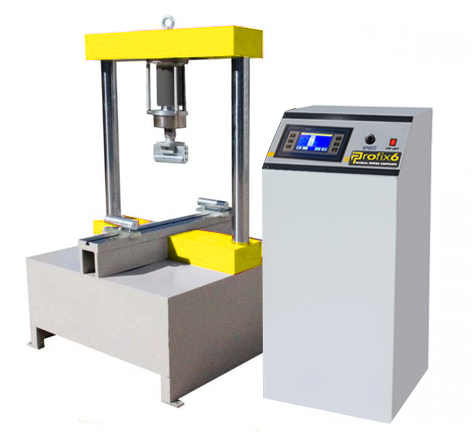

Automatic Flexural and Bend Test Machine
The Automatic Flexural and Bend Test Machines are range of 200 kN, 300 kN and 600 kN capacity flexure testing machines have been designed for reliable and consistent testing of flexural test on standard concrete beams, concrete or natural stone kerbs, concrete paving flags, and natural stone slabs and tensile splitting test of concrete paving blocks. These flexure testing machines are the result of con tinuous research to upgrade the testing machines with latest technologies to conform to the latest standards EN 12390-5, EN 12390- 6, EN 1338, EN 1340, BS 1881, ASTM C78, C293 and C496 in terms of its technical properties taking into account client requirements. These also meet the requirements of CE norms for health and safety of the operator.
Tests can be performed by either on PROFIX6 Unit or on a computer with using free software. The advantages of performing tests on computer with using software, such as reporting, graphical output, etc. Setting test parameters, including pace rate only required when the specimen type is changed. Pressing the START button on the control unit.
The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure. Automatically saves the test parameters and test results.
The range of flexural machines have the accuracy of Class 1 starting from 2% of the full capacity. Flextural test assemblies should be ordered seperately.
C2680 - | Automatic Flexural and Bend Test Machine, 200 kN Capacity, 220-240 V 50-60 Hz |
C2680/110 - | Automatic Flexural and Bend Test Machine, 200 kN Capacity, 110 V 60 Hz |
C2685 - | Automatic Flexural and Bend Test Machine, 300 kN Capacity, 220-240 V 50-60 Hz |
C2685/110 - | Automatic Flexural and Bend Test Machine, 300 kN Capacity, 110 V 60 Hz |
C2690 - | Automatic Flexural and Bend Test Machine, 600 kN Capacity, 220-240 V 50-60 Hz |
C2690/110 - | Automatic Flexural and Bend Test Machine, 600 kN Capacity, 110 V 60 Hz |
P.Model
C2680
C2685
C2690
Capacity
200 kN
300 kN
600 kN
Class 1 Range
4-200 kN
6-300 kN
12-600 kN
Ram Travel
100 mm
120 mm
350 mm
Max. Vertical Clearance
425 mm
425 mm
930 mm
Max. Horizontal Clearance
650 mm
640 mm
640 mm
Max. Clerance Between Lower Rollers
900 mm
900 mm
2000 mm
Power
1100 W
1100 W
1100 W
Dimensions (wxlxh)
1450x950x1200 mm
1450x950x1200 mm
1550x2000x2700 mm
Weight
325 kg
630 kg
2650 kg
