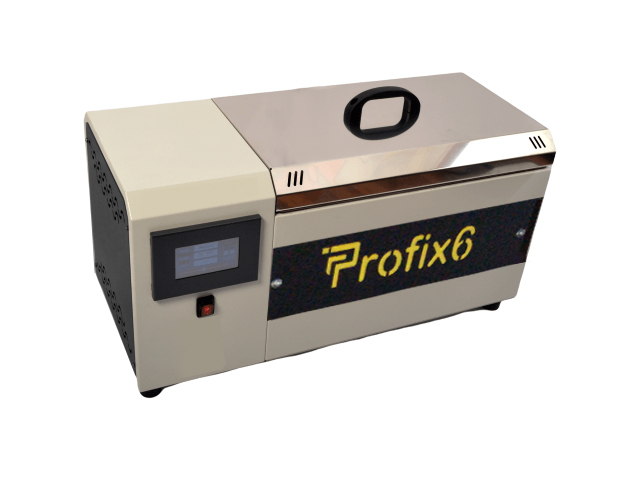

Marshall Water Bath

Category
Product Code
B1290
Quantity in Stock
qty
Price
Ask Price
Ask Price

The Marshall Water Baths are used in various material testing analyses. 15, 30 and 48 lt. tank capacity models are available and can be ordered with or without cooler units. Temperature is from ambient to 95°C. Internal surfaces are polished stainless steel with a sheet steel insulated outercase.
The EN 12697-23 covering the determination of the strength of bituminous mixtures, prescribe a water conditioning temperature of 5°C or from 5 to 25°C which are obtainable with a cooling system. Water bath are used for asphalt (marshall, bitumen testing), cement (curing on conditioning) applications.The cooler unit is located under the water bath. Complete with re-circulating unit for temperature uniformity.

P.Code

Capacity

Int. Dimensions

Ext. Dimensions

Temperature Range

Weight (approx.)

TMB-1640

15 Liters

160x330x300 mm

300x500x360 mm

for ambient to +90°C ± 1°C

15 kg

TMB-1642

30 Liters

160x520x250 mm

300x700x380 mm

for ambient to +90°C ± 1°C

18 kg

TMB-1644

48 Liters

160x620x500 mm

300x820x600 mm

for ambient to +90°C ± 1°C

25 kg

TMB-1640CS

15 Liters

160x330x300 mm

625x400x600 mm

+5°C to +70°C± 0,5°C

26 kg

TMB-1642CS

30 Liters

160x510x300 mm

625x400x760 mm

+5°C to +70°C± 0,5°C

36 kg

TMB-1644CS

48 Liters

160x620x510 mm

650x620x900 mm

+5°C to +70°C± 0,5°C

48 kg








B1290 - Marshall Water Bath, 15 L, 220-240 V 50-60 Hz
B1290/110 - Marshall Water Bath, 15 L, 110 V 60 Hz
B1292 - Marshall Water Bath, 30 L, 220-240 V 50-60 Hz
B1292/110 - Marshall Water Bath, 30 L, 110 V 60 Hz
B1294 - Marshall Water Bath, 48 L, 220-240 V 50-60 Hz
B1294/110 - Marshall Water Bath, 48 L, 110 V 60 Hz
B1295 - Cooler Unit for Marshall Water Bath
