Falling Head Permeability Set

Category
Product Code
S5860
Quantity in Stock
qty
Price
Ask Price
Ask Price

The Falling Head Permeability Set is used to study the behaviour of soil, particularly fine grained soils such as clay-like or silty soils, with respect to water flow. The Falling Head Permeability Cell is produced from plated steel with an inside diameter of 100 mm.The Wooden Stand is fitted with 4 glass Manometer Tubes of each 1500 mm long with inside diameters of about 21 mm, 12 mm, 5 mm and 3.5 mm. All tubes have connection valves. The Soaking Reservoir Tank is produced from plated steel with an over-flow tube and is used for containing the permeability cell during the test. De-Airing tank with in -let and a flow outlet Connection and Single Stage Vacuum Pump Should be ordered separately.

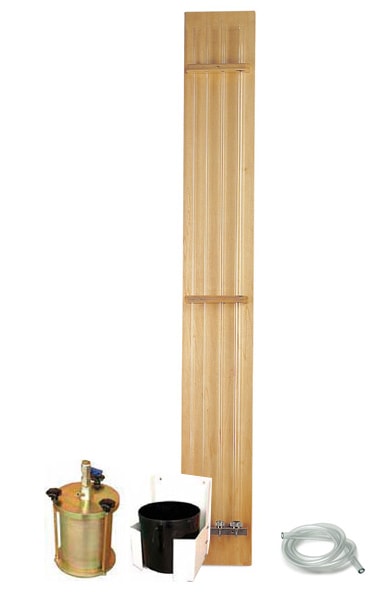

The Falling Head Permeability Set is supplied complete with;
• Falling Head Permeability Cell 100 mm dia.
• Wooden Stand with 4 Manometer Tubes
• Soaking Reservoir Tank
• 3 m Hose

Dimensions

240x100x1500 mm

Weight (approx)

14 kg





S5860 - Falling Head Permeability Set
S5861 - Wooden Stand with 4 Manometer Tubes and 3 m Hose
S5862 - Falling Head Permeability Cell 100 mm dia.
S5863 - Soaking Reservoir Tank
