DIGITAL LENGTH COMPARATOR

Category
Product Code
50-LC473200
Quantity in Stock
Conctact with us
Standards
EN 1367–4, 12617–4, 12808-4 | ASTM C151, C157, C227, C311, C341, C342, C441,C452, C490, C531, C596, C806, C878 | BS 1881:5, 6073

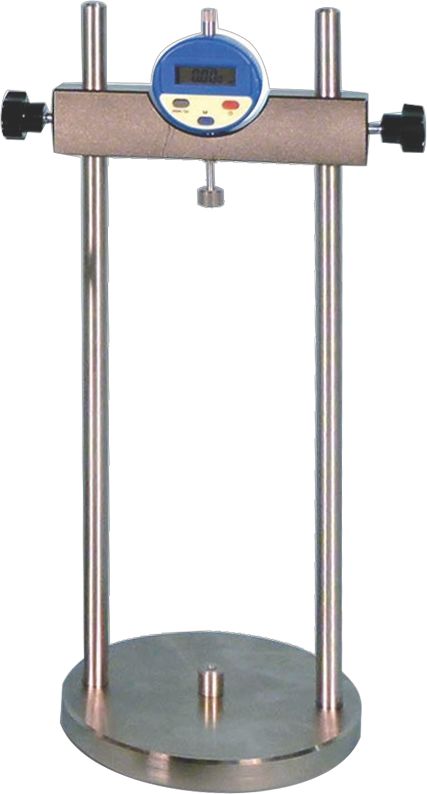

The Digital Length Comparator is used to determine the length changes on different type of cement prisms. The apparatus consists of length measuring frame and measuring device. Digital dial gauge is 0.001 mm x 12,7 mm. Reference rod and moulds should be ordered separately according to test to perform.

Dimensions

180x180x410 mm

Weight (approx)

6 kg





C4030 - Digital Length Comparator
C4045 - Shrinkage Mould Two Gang, 25x25x285 mm
C4046 - Steel Inserts
C4047 - Referance Rod 160 mm

Standards: EN 1367–4, 12617–4, 12808-4 | ASTM C151, C157, C227, C311, C341, C342, C441,C452, C490, C531, C596, C806, C878 | BS 1881:5, 6073

Digital Length Comparator 50-LC473200 PROFIX6 Digital Length Comparator
PROFIX6
