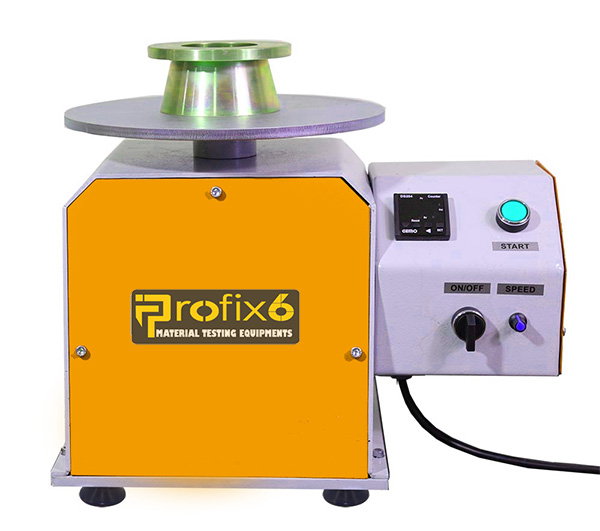

Cement Flow Table (Motorized Model)
Category
Sub Category
Product Code
CM4100
Quantity in Stock
qty
Price
Ask Price
Ask Price
The Cement Flow Tables are used for determining the consistency of mortar, lime and cement specimens. Cement Flow Table are produced in two models as manual and motorized.
The manual models cement flow tables are included with a hand wheel. The motor operated models cement flow tables are driven by a motor speed reducer coupling at the rate of one rev per second. The number of drops can preset on a counter and the machine stops automatically at the end of the cycle.
Cement Flow Tables consists of the following equipment;
• Bronze Flow Mould,
• Filling Hopper and Tamper.
| C3560 - | Cement Flow Table (Motorized Model), ASTM Standards | |
| C3565 - | Cement Flow Table (Motorized Model), EN Standards | |
| C3570 - | Motorized Cement Flow Table (ASTM Standards), 220-240 V 50 Hz | |
| C3570/110 - | Motorized Cement Flow Table (ASTM Standards), 110 V 60 Hz | |
| C3575 - | Motorized Cement Flow Table (EN Standards), 220-240 V 50 Hz | |
| C3576 - | Tamper (EN) Dia. 40x200 mm, 250 gr | |
| C3577 - | Tamper (ASTM) Hardwood, 13x25x150 mm | |
| C3578 - | Brass Mould (EN), Base dia.:100 mm - Top Dia.: 70 mm - Height: 60 mm | |
| C3579 - | Brass Mould (ASTM), Base dia.:100 mm - Top Dia.: 70 mm - Height: 50 mm |
P.Model
C3560 and C3570
C3565 and C3575
Table Dia.
254 mm
300 mm
Cone Top/Base Dia.
70 mm / 100 mm
70 mm / 100 mm
Cone Height
50 mm
60 mm
Drop Height
12.7 mm
10 mm
P.Model
C3560 and C3565
C3570 and C3575
Diameter
270x270x280 mm
460x350x360 mm
Weight(approx)
14 kg
38 kg
