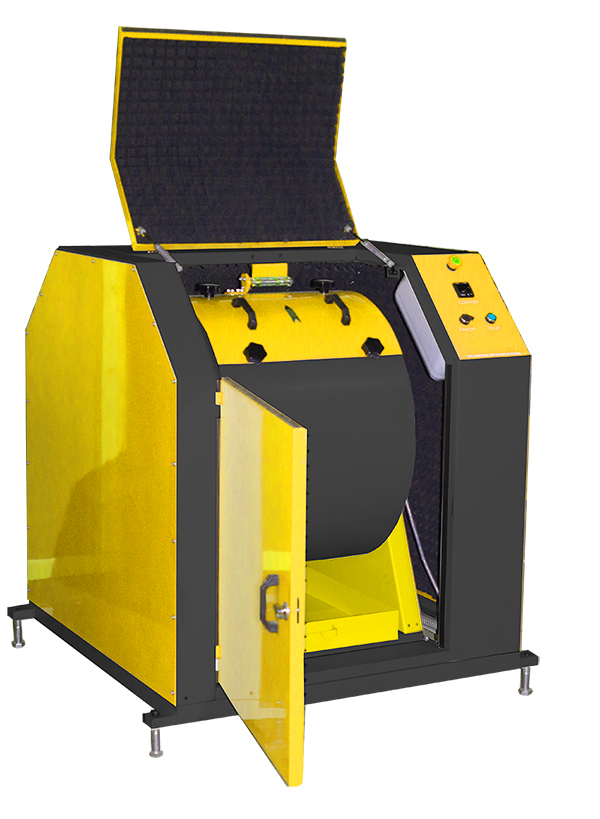

Los Angeles Abrasion Machine with Soundproof Safety Cabinet

Category
Product Code
AG270
Quantity in Stock
qty
Price
Ask Price
Ask Price

The Los Angeles Abrasion Testing Machine is supplied with a safety cabinet. The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives. The control unit is supplied with on the safety cabinet. The cabinet is equipped with an electric safety device which automatically stops the rotation of the drum when the door is opened, conforming to CE directives.
Los Angeles Abrasion Testing Machine is used for determination of the aggregates resistance to fragmentation. Los Angeles Abrasion Machine is consists of an electronic control unit and a rolled steel drum having an inside diameter of 711 mm and internal length of 508 mm. The drum is rotated at a speed of 30-33 rpm. The electronic control panel consists of a mains switch, start/stop button and programmable 5 digit revolution counter (with automatic stop at end of cycle).
The Los Angeles Abrasion Machine is supplied complete with abrasion ball and steel.
• 1.6 mm, 10mm, 11.2mm (or 12.5mm) and 14 mm sieves acc. to EN Standard should be ordered separately.
• 1.7 mm( No.12) sieve and other sieves which chance depending the grain size acc. to
ASTM and AASHTO standards, should be ordered separately.

Dimensions

1200x1150x1300 mm

Weight (approx)

450 kg

Power

750 W



AG270 - Los Angeles Abrasion Machine with Soundproof Safety Cabinet, 220-240 V 50/60 Hz
AG270/110 - Los Angeles Abrasion Machine with Soundproof Safety Cabinet, 110 V 60 Hz
Los Angeles Abrasion Machine with Soundproof Safety Cabinet The Los Angeles Abrasion Machine is used for determine resistance to degradation testing of coarse aggregates with a smaller than 37.5 mm. AG270 PROFIX6 Los Angeles Abrasion Machine with Soundproof Safety Cabinet
