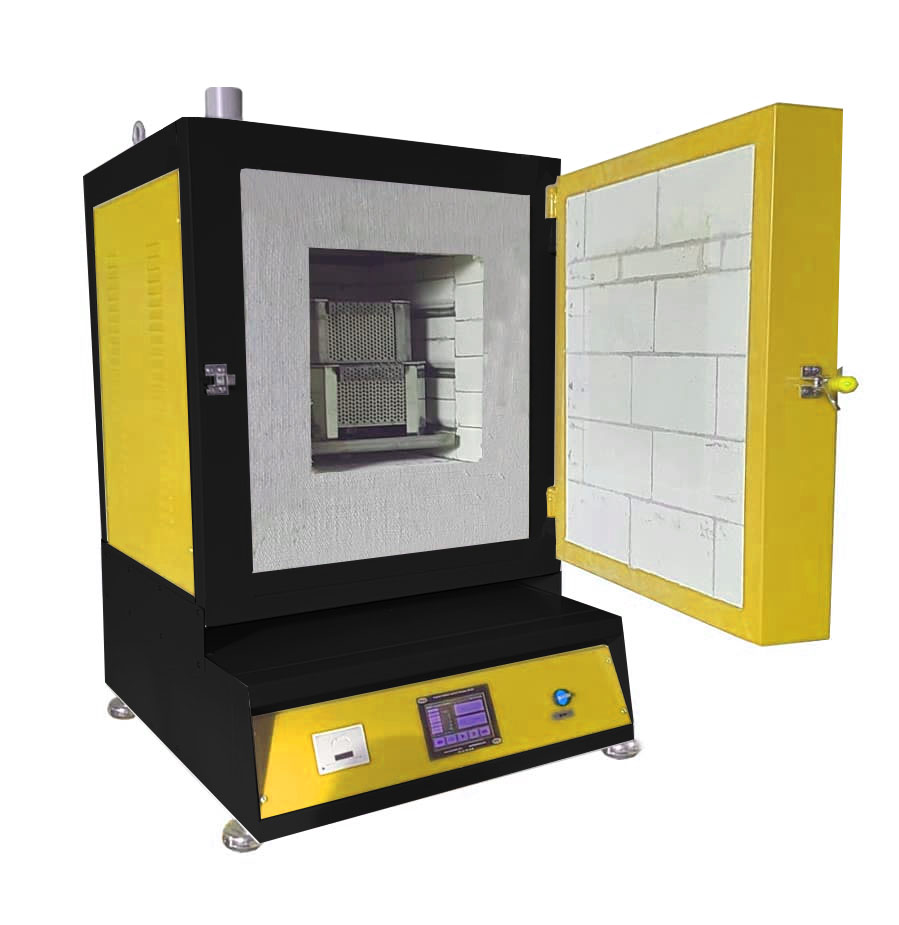

Asphalt Content Ignition Furnace (NCAT)

Category
Product Code
B1100
Quantity in Stock
qty
Price
Ask Price
Ask Price

The Asphalt Content Binder Ignition Furnace (NCAT) is used to determine the asphalt binder content of hot mix asphalt/bituminous mixtures by the method of loss on ignition. The Asphalt Binder Analyzer is supplied complete with double sample basket with safety cover, extraction fork and 3 meters of metal exhaust pipe.
OVEN AND AFTERBURNER
• High efficiency heating system with afterburner for a total combustion of exhaust fumes to minimize emissions to conform CE Directives.
• Sample size up to 4000 g for more representative test results
• Temperature range is 392 to 1202°F (200 to 650°C).
• Maximum power rating is 3,5 kW
• Supplied complete with 2 sample trays, fork to catch the pan and cooling cage
HARDWARE
• 16 bit microprocessor controller.
• CPU card controlling both test data display,temperature, database and internal functions.
• On board 40 column serial printer
• An accurate internal balance monitors weights automatically throughout ignition to within ± 0.1 g.
• PID closed loop thermoregulation for both oven and afterburner
• 240x120 pixel large graphic display
• RS 232 output for PC connection
FIRMWARE
• Bidirectional real time communication with the weighing system
• Test setting menu for initial weight, weight loss percentage, correction factor.
• Calibration menu to check and set temperature and weight calibration, for possible manual control.
• Test performance menu of all the test data.
• Internal database for up to 100 tests.
SAFETY FEATURES
• Door safety features, such as a software-activated door lock, an automatic interlock that cuts power when door is open, full 180 degree door opening and door hinge lock eliminate harmful solvents and make operation easy. CE-Approved.
• Automatic monitoring of closed door before test start.

Dimensions

600x900x1100 mm

Weight (approx)

110 kg

Power

3500 W


B1100 - Asphalt Content Binder Ignition Furnace - 380 V 50 Hz
