CONCRETE BEAM TEST APPARATUS
Category
Sub Category
Product
Product Code
59-CBA48170
Quantity in Stock
Conctact with us
Standards
EN 12390-6, ASTM C496, BS 1881:117

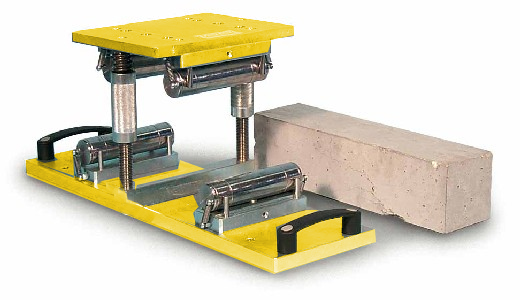

The Concrete Beam Test Apparatus is used for tests for two-point and single-point bending of concrete bays 100x100x400 (500) and 150x150x600 (750) mm. The device has two lower rollers, one of which is hinged, and the two upper rollers for a two-point dough. One of the upper rollers can be placed in the center for a single-point test.
| C3300 - | Concrete Beam Test Apparatus |
Standards: EN 12390-6, ASTM C496, BS 1881:117
Dimensions
610x200x320 mm
Weight (approx)
25 kg
