Impermeability Test Sets

Category
Product Code
C2820
Quantity in Stock
qty
Price
Ask Price
Ask Price

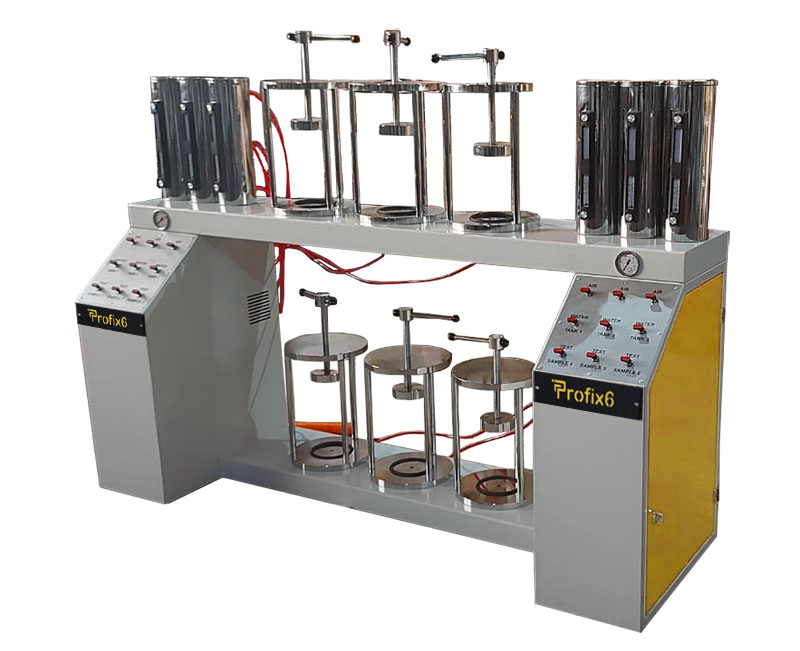

The Impermeability Test Sets are used for the determination of the depth of penetration of water to hardened concrete specimens under pressure. 3 or 6 specimen capacity models and with and without quantitative measurement equipment of water penetratoion models are available. The system can test 150 mm and 200 mm cube specimens, Ø100x200 and Ø150x300 mm cylinder specimens. Up to 10 bar of working pressure is generated on the sample with 0.2 bar precision with compressed air applied to the integral water tank and controlled by a pressure regulator with a pressure gauge. The test sets with the quantitative measurement equipment of water penetratoion the penetration of water is measured through the burettes. The system comprises impermeability gaskets for every cell. The measurement apparatus is supplied as standard. The apparatus has to be fitted with a suitable air compressor.

Product Code

C2820

C2830

C2840

C2850

Capacity

3 Specimen Capacity

3 Specimen Capacity

6 Specimen Capacity

6 Specimen Capacity

Dimensions

1500x550x1750 mm

1500x550x1300 mm

1500x550x1750 mm

1500x550x1300 mm

Weight

150 kg

125 kg

190 kg

155 kg





C2820 - Impermeability Test Set with Quantitative Measurement Equipment, 3 Specimen Capacity
C2830 - Impermeability Test Set without Quantitative Measurement Equipment, 3 Specimen Capacity
C2840 - Impermeability Test Set with Quantitative Measurement Equipment, 6 Specimen Capacity
C2850 - Impermeability Test Set without Quantitative Measurement Equipment, 6 Specimen Capacity
Impermeability Test Sets C2820 PROFIX6 Impermeability Test Sets
PROFIX6
