FRONT LOADING OEDOMETER (CONSOLIDATION)

Category
Product Code
54-CO459300
Quantity in Stock
Conctact with us
Standards
BS 1377 | ASTM D2435, D3877, D4546 | AASHTO T216

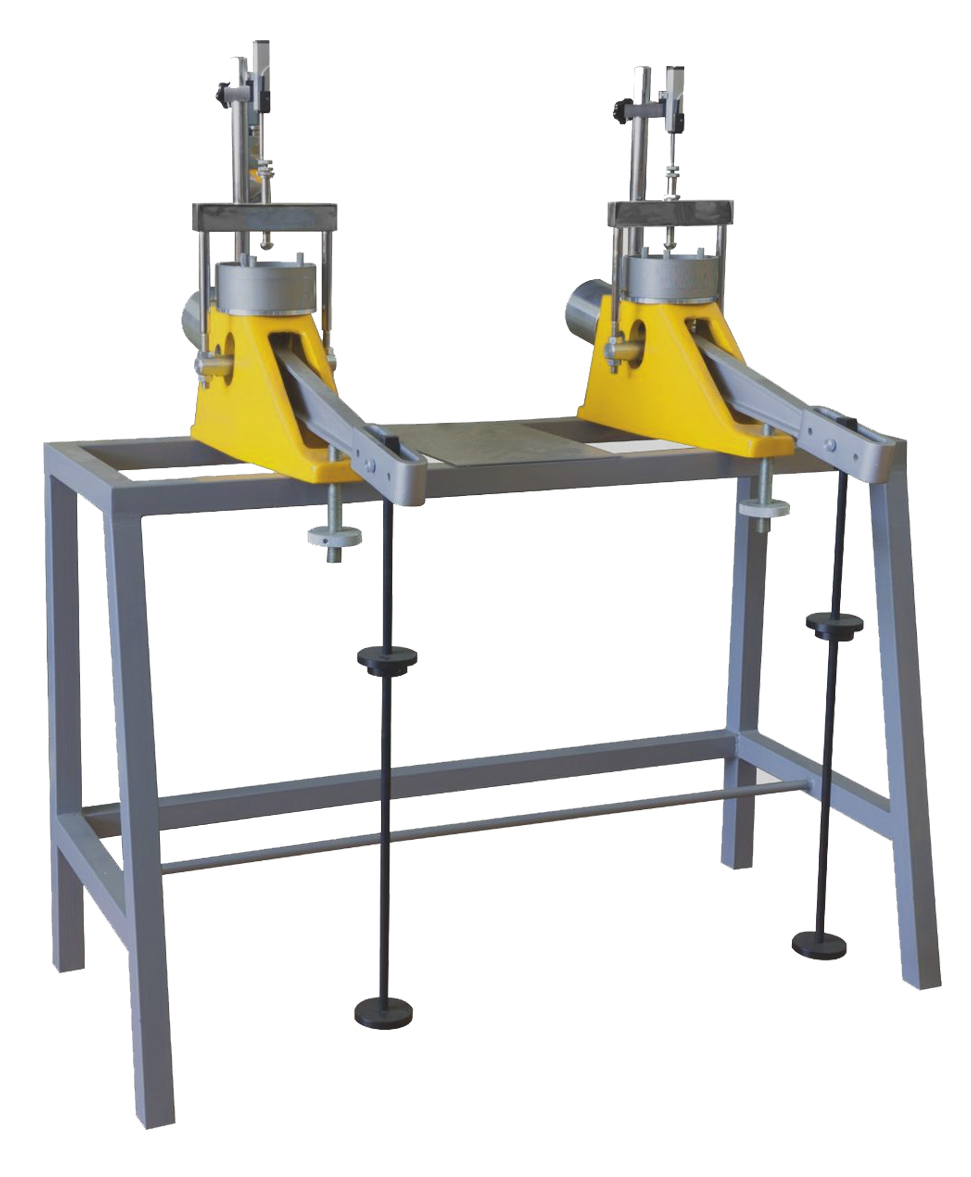

The Front Loading Oedometer (Consolidation) is a frame manufactured from aluminium alloy to provide a high degree of accuracy with minimum distortion.

The frame is designed to load the sample via a lever arm assembly and one of three alternative beam ratios 9:1, 10:1 and 11:1. The beam is fitted with a counterweight and beam support cylinder.

The cell platform accepts the full range of consolidation cells and is fitted with a central spigot to ensure accurate centring of the cell under load.

The fixed ring consolidation cells are manufactured from corrosion resistant materials and comply with the requirements of the relevant standards. An integral water reservoir is incorporated into the cell, allowing the sample to be flooded if required. All cells are supplied with a top and bottom porous disc, pressure pad and cutting ring (sample).

Features
• Frame made of aluminum alloy to allow a high degree of precision with a minimum of deformation.
• The lever is 3 ratio 9:1; 10:1 and 11:1 and is equipped with an adjustable counterweight.
• This oedometer accepts cells up to 100 cm².
• Supplied with 10 mm vertical displacement sensor with bracket and calibration

The Front Loading Oedometer set (54-CO459300) is supplied with:
• 1 pcs Consolidation bench for 1 oedometers
• 1 pcs Oedometer
• 1 pcs 10x0.01 mm dial gauge
• 1 pcs 50 kg set of weights: 4 x 10 kg, 1 x 5 kg, 2 x 2 kg and 1 x 1 kg

The Front Loading Oedometer set (54-CO459305) is supplied with:
• Consolidation bench for 1 oedometers (1 pcs)
• Oedometer (3 pcs)
• 10x0.01 mm dial gauge (3 pcs)
• 50 kg set of weights: 4 x 10 kg, 1 x 5 kg, 2 x 2 kg and 1 x 1 kg kg, 2 x 2 kg and 1 x 1 kg (3 pcs)

The Front Loading Oedometer set with electronic displacement sensor (54-CO459310) is supplied with:
• Consolidation bench for 1 oedometer (1 pcs)
• Oedometer (1 pcs)
• Linear potentiometric displacement transducer 10x0.01 mm (1 pcs)
• Set of 50 kg weights: 4 x 10 kg, 1 x 5 kg, 2 x 2 kg and 1 x 1 kg (1 pcs)
• Electronics for data transfer and processing on a data acquisition unit
• Software for consolidation tests

The Front Loading Oedometer set with electronic displacement sensor (54-CO459315) is supplied with:
• Consolidation bench for 3 oedometers (1 pcs)
• Oedometer (3 parts)
• Linear potentiometric displacement transducer 10x0.01 mm (3 pieces)
• Set of 50 kg weights: 4 x 10 kg, 1 x 5 kg, 2 x 2 kg and 1 x 1 kg (3 piece)
• Electronics allowing the transfer and exploitation of data on an acquisition center
• Software for consolidation tests

Cell Product Code : 54-CO459320 54-CO459322 54-CO459324
Application : High Pressure ASTM BS/EN
Sample Diameter : 50 mm 63.5 mm 75 mm
Sample Surface : 1963 mm² 4.906 inch² 4416 mm²
Beam Ratio : 10:1 11:1 9:1
Total Load : 64 kg 64 kg 80 kg
Stress : 32 kg/cm² 20 t/ft² 16.3 kg/cm²
Stress for 1 kg : 0.5 kg/cm² 0.3125 ton/ft² 0.2/cm²

Product code : 54-CO459300 and 05 54-CO459310 54-CO459315
Dimensions : 250x750x1400 mm 750x750x1400 mm 750x775x1400 mm
Weight : 95 kg 140 kg 145 kg

Product code Weight sets for consolidation
54-CO459332 : 16 kg weight set (2) 5 kg, (1) 2 kg, (2) 1 kg, (3) 0.5 kg, (2) 0.25 kg
54-CO459334 : 32 kg weight set (1) 10 kg, (3) 5 kg, (2) 2 kg, (1) 1 kg, (3) 0.5 kg, (2) 0.25 kg
54-CO459336 : 50 kg weight set (3) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0.5 kg, (2) 0.25 kg
54-CO459338 : Set of 64 kg weight (4) 10 kg, (3) 5 kg, (2) 2 kg, (3) 1 kg, (3) 0.5 kg, (2) 0.25 kg
54-CO459340 : 80 kg weight set (6) 10 kg , (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0.5 kg, (2) 0.25 kg
Product Model Product Name
54-CO459300 Front Loading Oedometer Set for with 1 Oedometer
54-CO459305 Digital Front Loading Oedometer Set with Electronic Displacement Sensor with 1 Oedometer
54-CO459310 Front Loading Oedometer Set with 3 Oedometer
54-CO459315 Digital Front Loading Oedometer Set with Electronic Displacement Sensor with 3 Oedometer
54-CO459320 Consolidation cell for high pressure, Ø 50 mm
54-DS459521 Calibration disc for consolidation cell Ø 50 mm (for 54-CO459320), stainless steel
54-CO459322 Consolidation cell for high pressure, Ø63.5 mm (2.5 in) according to ASTM
54-CO459323 Calibration disc for consolidation cell Ø63.5 mm (2.5 in) (for 54-CO459322), stainless steel
54-CO459324 Consolidation cell for high pressure Ø 75 mm
54-CO459325 Calibration disc for consolidation cell Ø 75 (for 54-CO459324), stainless steel
54-CO459326 Device for the preparation of consolidation samples, for samples of Ø 50 mm
54-CO459328 Device for the preparation of consolidation samples, for samples of Ø63.5 mm (2.5 in)
54-CO459330 Device for the preparation of consolidation samples, for samples of Ø75 mm
54-CO459332 Set of 16 kg weights: 2x5 kg, 1x2 kg, 2x1 kg, 3x0.5 kg, 2x0.25 kg
54-CO459334 Set of 32 kg weights: 1x10 kg, 3x5 kg, 2x2 kg, 1x1 kg, 3x0.5 kg, 2x0.25 kg
54-CO459336 Set of 50 kg weights: 3x10 kg, 2x5 kg, 3x2 kg, 2x1 kg, 3x0.5 kg, 2x0.25 kg
54-CO459338 Set of 64 kg weights: 4x10 kg, 3x5 kg, 2x2 kg, 3x1 kg, 3x0.5 kg, 2x0.25 kg
54-CO459340 Set of 80 kg weights: 6x10 kg + 2x5 kg + 3x2 kg + 2x1 kg + 3x0.5 kg + 2x0.25 kg

Standards: BS 1377 | ASTM D2435, D3877, D4546 | AASHTO T216
