PLATE LOAD TEST SET

Category
Product Code
54-PL460950
Quantity in Stock
Conctact with us
Standards
ASTM D 1194 | ASTM D 1195 | ASTM D 1196 | BS 1377

The Plate Loading Test Sets produce as two model as 200 and 500 kN. Plate loading tests is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment are available, together with many accessories according to the different Standards and specific enduser needs. All test sets supplied complete with 1,5 m long flexiable hose with quick release coupling.

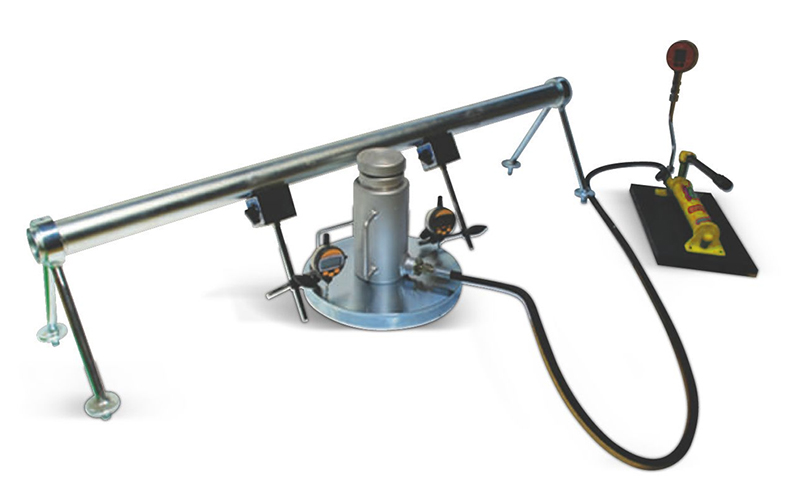

The S5670 Plate Bearing Test Set 200 kN is supplied complete with:
olarak
• Datum Bar - 2.4 m long
• Piston Assemly 200 kN capacity, for Plate Load Bearing Test Sets
• Hydraulic Hand Pump, 700 bar.
• 25 mm travel x 0.01 mm digital dial gauges with dial supports
• Loading Plate Ø 300 mm for for Plate Load Bearing Test Sets
• Loading Plate Ø 450 mm for for Plate Load Bearing Test Sets
• Loading Plate Ø 600 mm for for Plate Load Bearing Test Sets
• Loading Plate Ø 760 mm for for Plate Load Bearing Test Sets
The S5680 Plate Bearing Test Set 500 kN is supplied complete with:
• Datum Bar - 2.4 m long
• Piston Assemly 500 kN capacity, for Plate Load Bearing Test Sets
• Hydraulic Hand Pump, 700 bar.
• 25 mm travel x 0.01 mm digital dial gauges with dial supports
• Loading Plate Ø 300 mm for for Plate Load Bearing Test Sets
• Loading Plate Ø 450 mm for for Plate Load Bearing Test Sets
• Loading Plate Ø 600 mm for for Plate Load Bearing Test Sets
• Loading Plate Ø 760 mm for for Plate Load Bearing Test Sets

Product Code

S5670

S5680

Dimensions

650x350x600 mm

850x850x130 mm

Weight

130 kg

150 kg



S5670 - Plate Load Test Set, 200 kN Capacity
S5680 - Plate Load Test Set, 500 kN Capacity

Standards: ASTM D 1194 | ASTM D 1195 | ASTM D 1196 | BS 1377
