Modified proctor moulds and rammers

Category
Product Code
S5720
Quantity in Stock
qty
Price
Ask Price
Ask Price

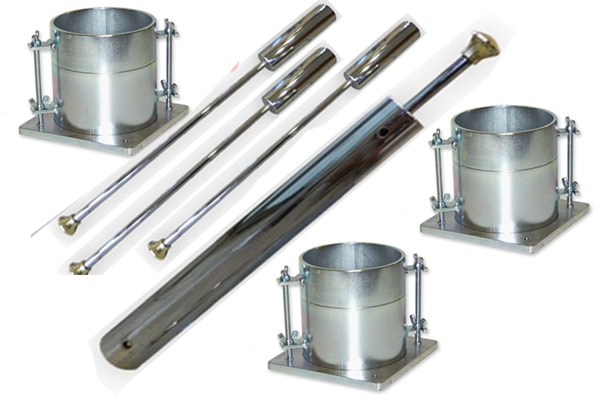

Modified Moulds are used for determining the moisture content and density of compacted soil. These are made of plated steel for corossion , includes collar, mould body and base plate. Modified Proctor Rammers are used to compact the soil sample in the Proctor. Different models are available conforming to the international standards.

Modified Proctor Moulds - Technical Specifications

P.Code

Product Name

Internal Dia.(mm)

Body (mm)

Volume (cm³)

Weight (kg)

S5720

Modified Proctor Mould ASTM

152.4 ± 0.7 mm

116.4 ± 0.5 mm

2124 ± 25

10 kg

S5730

B Type Modified Proctor Mould EN

150 ± 1 mm

120 ± 1 mm

2120

9,8 kg

S5740

Modified Proctor Mould BS

152 ± 0.5 mm

127 ± 1 mm

2.303

7,5 kg

Modified Proctor Rammers - Technical Specifications

P.Code

Product Name

Internal Dia.(mm)

Body (mm)

Volume (g)

Weight (kg)

S5725

Modified Proctor Compaction Rammer ASTM

50.8 mm

304.8± 1 mm

2495 ± 23 g

4.5 kg

S5735

B Type Modified Proctor Compaction Rammer EN

50 ± 0.5 mm

305± 3 mm

2500 ± 20 g

4,5 kg

S5745

4.5 kg Compaction Rammer BS

50 ± 0.5 mm

450± 3

4500 ± 50 g

8 kg







S5720 - Modified Proctor Mould ASTM Standards
S5725 - Modified Proctor Rammer ASTM Standards
S5730 - B Type Modified Proctor Mould EN Standards
S5735 - B Type Modified Rammer Mould EN Standards
S5740 - Modified Proctor Mould BS Standards
S5745 - 4,5 kg Modified Proctor Rammer BS Standards
