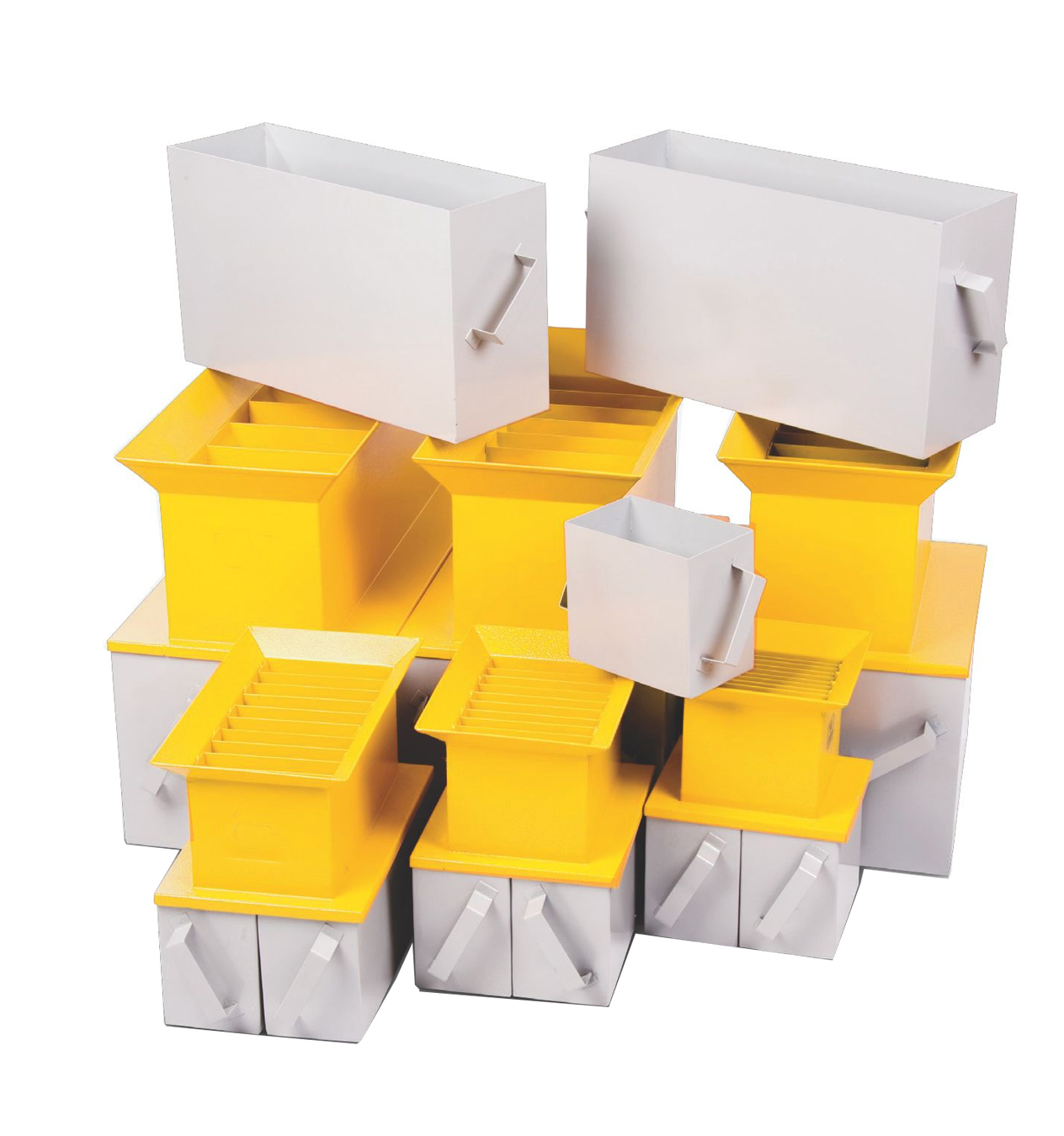

SAMPLE SPLITTER (RIFFLE BOX)
Category
Product
Product Code
48-RB456360
Quantity in Stock
Conctact with us
Standards
EN 932-2 | ASTM C702 | BS 812:1, 1377:1, 1924:1
Riffle boxes are used for dividing aggregates into 2 equal homogenous quantity for testing.
The Riffle Box is electrostatically painted and manufactured to meet the relevant International standard both in the slot width and number of slots.
The Sample Splitter (Riffle Box) are supplied with 2 collecting pans.
| Model | Aperture | Number of Slots | Dimensions | Weight |
|---|---|---|---|---|
| 48-RB456360/5 | 5 mm | 16 | 130x180x180 mm | 2 kg |
| 48-RB456360/7 | 7 mm | 12 | 130x180x180 mm | 2,5 kg |
| 48-RB456360/10 | 10 mm | 14 | 150x200x250 mm | 4.5 kg |
| 48-RB456360/13 | 13 mm | 12 | 200x250x350 mm | 6 kg |
| 48-RB456360/15 | 15 mm | 12 | 200x290x350 mm | 6.5 kg |
| 48-RB456360/19 | 19 mm | 10 | 220x310x400 mm | 11 kg |
| 48-RB456360/20 | 20 mm | 10 | 230x320x420 mm | 11 kg |
| 48-RB456360/25 | 25 mm | 10 | 250x350x420 mm | 12 kg |
| 48-RB456360/30 | 30 mm | 10 | 230x420x450 mm | 15 kg |
| 48-RB456360/38 | 38 mm | 8 | 320x430x570 mm | 16 kg |
| 48-RB456360/45 | 45 mm | 8 | 320x450x590 mm | 20 kg |
| 48-RB456360/50 | 50 mm | 8 | 320x500x600 mm | 27 kg |
| 48-RB456360/64 | 64 mm | 8 | 360x600x600 mm | 32 kg |
| 48-RB456360/75 | 75 mm | 8 | 370x700x600 mm | 35 kg |
| Product Model | Product Name |
|---|---|
| 48-RB456360/5 | Riffle Boxes (Sample Splitter), 5 mm |
| 48-RB456360/7 | Riffle Boxes (Sample Splitter), 7 mm |
| 48-RB456360/13 | Riffle Boxes (Sample Splitter), 13 mm |
| 48-RB456360/15 | Riffle Boxes (Sample Splitter), 15 mm |
| 48-RB456360/19 | Riffle Boxes (Sample Splitter), 19 mm |
| 48-RB456360/20 | Riffle Boxes (Sample Splitter), 20 mm |
| 48-RB456360/25 | Riffle Boxes (Sample Splitter), 25 mm |
| 48-RB456360/30 | Riffle Boxes (Sample Splitter), 30 mm |
| 48-RB456360/38 | Riffle Boxes (Sample Splitter), 38 mm |
| 48-RB456360/45 | Riffle Boxes (Sample Splitter), 45 mm |
| 48-RB456360/50 | Riffle Boxes (Sample Splitter), 50 mm |
| 48-RB456360/64 | Riffle Boxes (Sample Splitter), 64 mm |
| 48-RB456360/75 | Riffle Boxes (Sample Splitter), 75 mm |
Standards: EN 932-2 | ASTM C702 | BS 812:1, 1377:1, 1924:1
