AGGREGATE IMPACT VALUE (AIV) TESTING APPARATUS
Category
Sub Category
Product Code
48-IV455150
Quantity in Stock
Conctact with us
Standards
BS 812:112

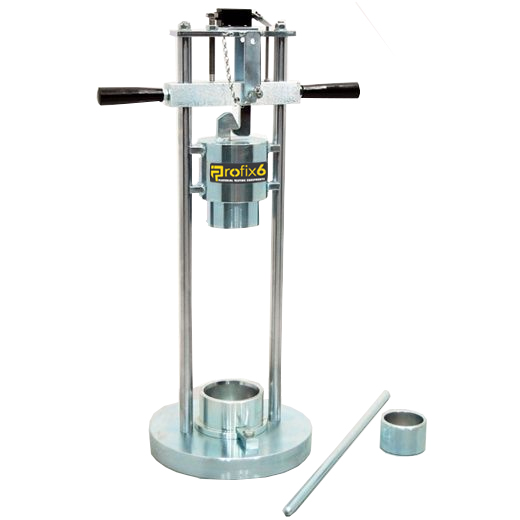

The Aggregates impact value (AIV) apparatus is used to determine the aggregate impact value which provides a relative measure of the resistance of an aggregate to sudden shock or impact.
The counter fitted to the machine automatically records the number of blows delivered to the sample. AIV is made from steel protected against corrosion.
Aggregate Impact Value (AIV) Apparatus is supplied complete with;
• Impact Value Frame with Counter
• Cylindrical Measure, Ø 75 mm,
• Steel Tamping Rod, Ø 16x600 mm
| Dimensions | 440x320x870 mm |
|---|---|
| Weight (approx) | 55 kg |
| Product Model | Product Name |
|---|---|
| 48-IV455150 | Aggregate Impact Value (AIV) Testing Apparatus |
Standards: BS 812:112
