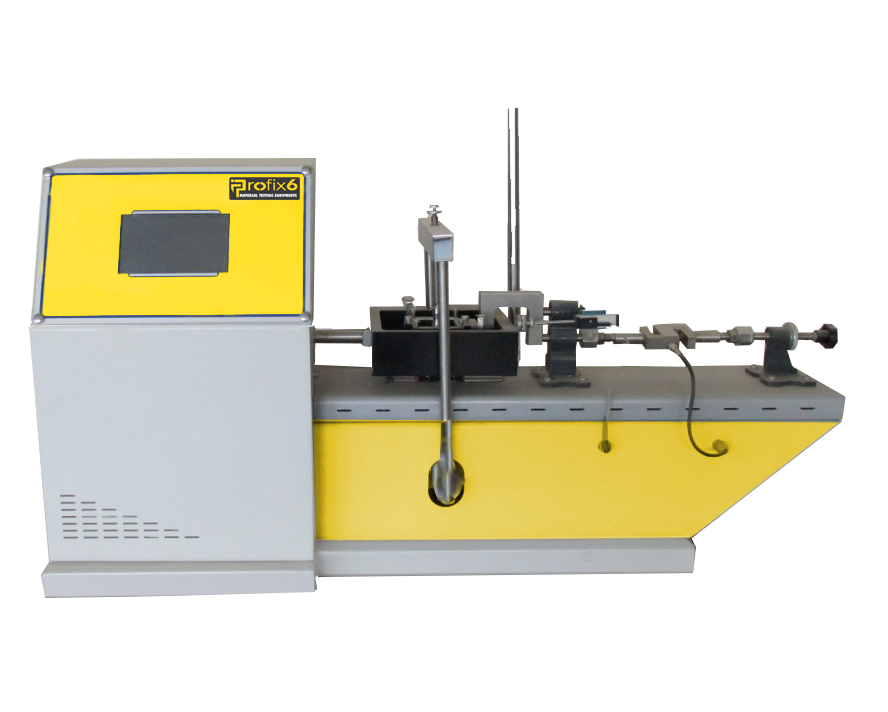

Automatic Direct Residual Shear Machine
The Automatic Direct Residual Shear Machine is capable of performing the consolidation and shearing phases of a standard direct shear and residual shear test under full automatic control.
The system consists of a computer-controlled unit that utilizes micro-stepper motors to apply the vertical and horizontal loads to the soil specimen. The system is capable of doing a consolidation process at 32 phase automatically.
Horizontal shearing can be applied at a specified rate of deformation or at a specified rate of horizontal force change, or at a specified set of force steps of a specified duration.
The system is capable of displaying the current status of a test and graphically portraying the progress of the test in real time. The system includes the capability for the operator to alter the test process and conditions at any stage of the test.
The Automatic Direct Residual Shear Test Machine is supplied complete with;
• Load Cell 5 kN
• Linear Potentiometric Displacement Transducer (10x0.001 mm)
• Linear Potentiometric Displacement Transducer (25x0.001 mm)
• Profix6 Software
• Weight Set
Shear Box Assembly, other optional accessories including specimens cutter and extrusion be ordered separately.
S5200 - | Automatic Direct / Residual Shear Test Machine, 220-240 V 50-60 Hz |
S5200/110 - | Automatic Direct / Residual Shear Test Machine, 110 V 60 Hz |
S5205 - | Shear Box Assembly, 60x60 mm |
S5206 - | Specimen Cutter, 60x60 mm |
S5207 - | Extrusion Dolly, 60x60 mm |
S5208 - | Shear Box Assembly, Ø 60 mm |
S5209 - | Specimen Cutter, Ø 60 mm |
S5210 - | Extrusion Dolly, Ø 60 mm |
S5211 - | Shear Box Assembly, 100x100 mm |
S5212 - | Specimen Cutter, 100x100 mm |
S5213 - | Extrusion Dolly, 100x100 mm |
S5214 - | Shear Box Assembly, Ø 100 mm |
S5215 - | Specimen Cutter, Ø 100 mm |
S5216 - | Extrusion Dolly, Ø 100 mm |
S5217 - | Shear Box Assembly, Ø 2.5 inch/td> |
S5218 - | Specimen Cutter, Ø 2.5 inch |
S5219 - | Extrusion Dolly, Ø 2.5 inch |
S5220 - | Slotted Weight Set,50 kg (4x10 kg + 1x5 kg + 2x2 kg + 1x1 kg) |
Capacity
5 kN
Speed Range
0.00003 to 15 mm per min
Horizantal Travel
125 mm
Vertical Travel
12.5 mm
Dimensions
230x560x770 mm
Weight (approx)
70 kg
Power
750 W
