CONCRETE FLOW TABLE

Category
Sub Category
Product Code
51-CF475130
Quantity in Stock
Conctact with us
Standards
EN 12350-5

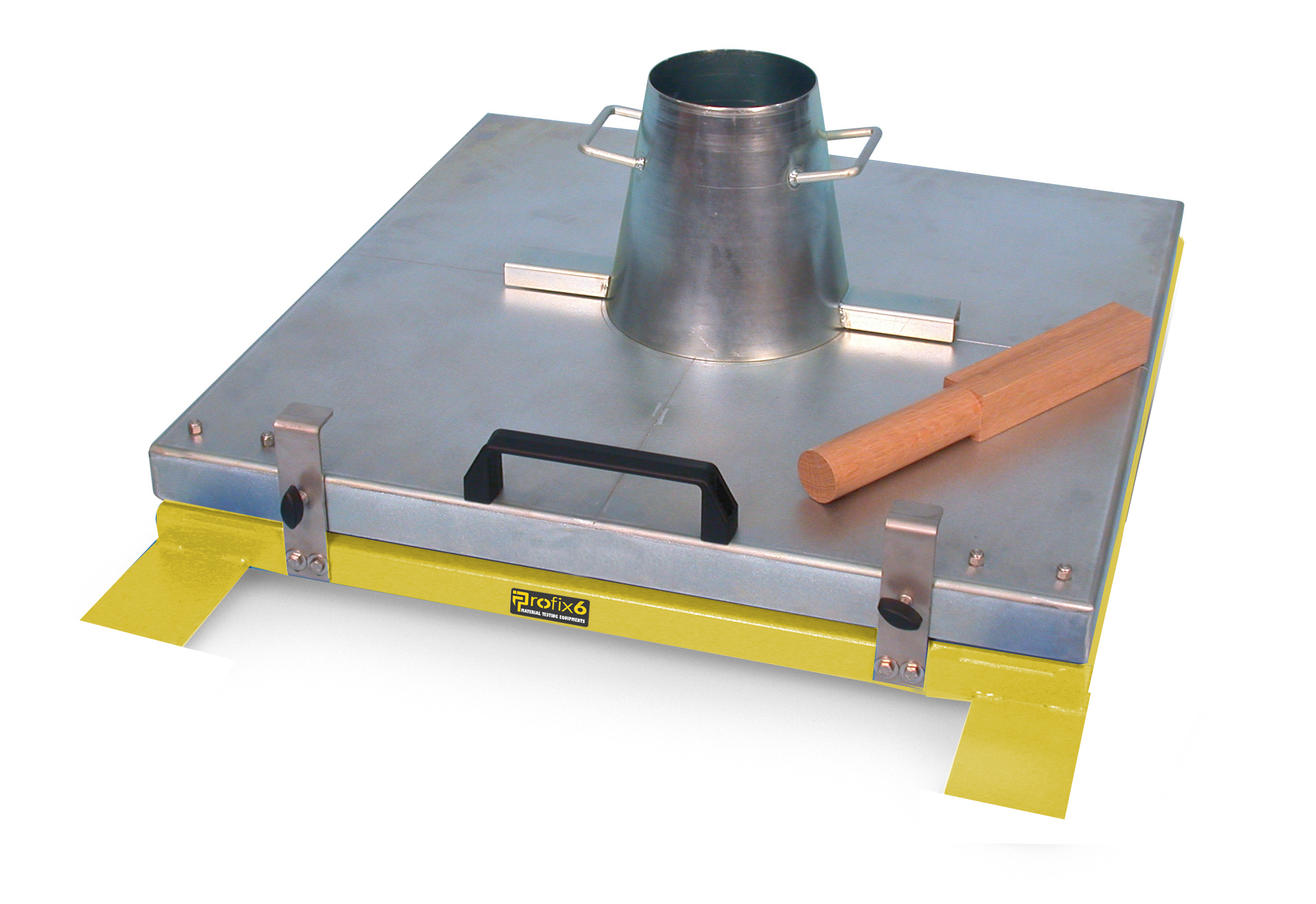

The Concrete Flow Table is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table.
The flow table set consists of a double steel table, an upper table measuring 700x700 mm and hinged at one side to the lower table.
All parts are protected against corrosion. The stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm base diameter and 200 ±2 mm height and 1.5 mm thickness.
The Concrete Flow Table is supplied complete with;
• Flow Cone
• Wooden Tamper

Dimensions

700x850x300 mm

Weight (approx)

32 kg




C3090 - Concrete Flow Table Set
C3091 - Flow Cone for C3090
C3092 - Wooden Tamper 40x40x335 mm

Standards: EN 12350-5

Concrete Flow Table 51-CF475130 PROFIX6 Concrete Flow Table
PROFIX6
