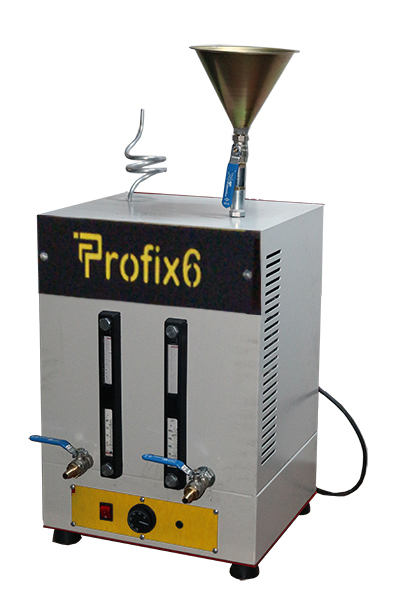

Solvent Recovery Distiller Unit
The Solvent Recovery Distiller Unit is used to recover the solvent liquid after its use for the extraction tests. This recovery unit has been designed to recover unflammable solvents. The consists of two stainless steel chambers. The first chamber is used for dirty solvent. The second chamber used for cleaned solvent. A Solvent in the left-hand side chamber is distilled by an electrical heater and then passes through a water cooling system and drops into the second chamber ready for re-use a test. Once the process is completed, a temperature switch automatically stops the heating elements. The solvent recovery unit is supplied complete with 10 m plastic tubing, tube clamps, sieve insert 0.6 mm opening and one lid.
The Solvent Recovery Unit is supplied complete with;
• Plastic Tubing, 10 m
• Tube Clamps
• Sieve Insert, 0.6 mm
• Lid
B1280 - | Solvent Recovery Distiller Unit, 220-240 V 50-60 Hz |
B1280/110 - | Solvent Recovery Distiller Unit, 110 V 60 Hz |
150°C
Dimensions
420x350x680 mm
Weight (approx)
20 kg
Power
1200 W
