The Concrete Pipe Testing Machines are is used for compressive strength tests of concrete and steel pipes whose outside diameters are from 100 mm to 3000 mm. Concrete pipe test machines are manufacturer of capacity of between 400 kN to 1000 kN.

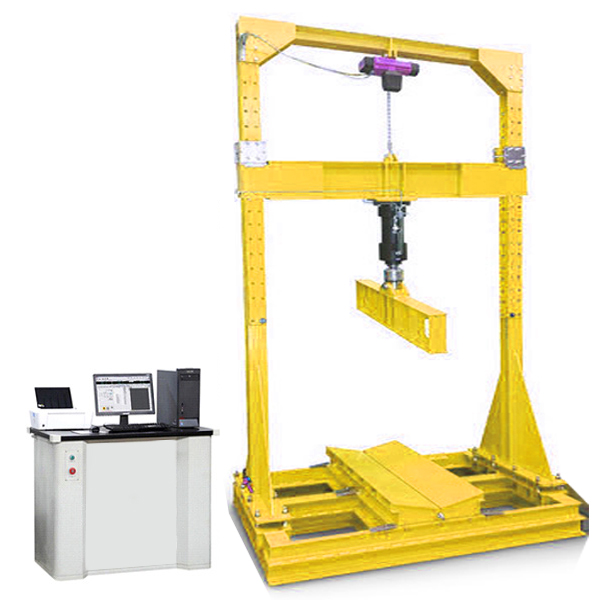

The Concrete pipe testing machines are consisting of a frame and a hydraulic power pack. The frames are rigid 2 column constructions with superior axial and lateral stiffness and are precision aligned.
Pipe Testing Machine frames have to be anchored to concrete base. All required parts to anchor the frame to the concrete base is supplied. The frames without carriying chassis is supplied with V shaped bottom bearers which can be anchored to concrete base.
The rectangular shaped top bearer is detachable from the actuator and the bottom bearer is V-shaped with an angle of 150°. During pipe loading the system permits top bearer to rotate 360 degres at horizontal plane and allows it to move at vertical plane of a minimum value of ±8°. As an option 3- and 4-point bending accessories are available. Upper crosshead height adjustment is done with electric motor drive for easy and precise test set up and manual through locking pins are used to fix the upper crosshead.
LCD Graphics Data Acquisition and Controls System
PROFIX6 PLUS is designed to control the machine and processing data from load cells or pressure transducers installed on the compression machine frame. Easy to read LCD graphics display and button data keypads make the unit quick and straight forward to operate. All interactions with the measuring system are via the front control panel by using simple menu-driven procedures. The PROFIX6 PLUS digital allows real time load us time graph. At the end of the test cycle, the results can be stored in the large memory or downloaded to a PC in PROFIX6 PLUS software format.
The PROFIX6 PLUS control console includes a multi-valve hydraulic pump, a safety valve, a pressure relief valve and an oil regulator, which ensures maximum safety and smooth linear loading. The machine can be supplied with standard automatic power pack, dual stage, controlled by PROFIX6 PLUS.

P.Code

C2665

C2670

C2675

Capacity

400 kN

600 kN

1000 kN

Piston Stroke

200 mm

300 mm

400 mm

Diameter of Tested Pipes (max / min)

100/35 cm

120/45 cm

300/45 cm

Maximum Length of Test Pipes

200 mm

200 mm

250 mm

Max. Working Pressure

410 Bar

410 Bar

410 Bar

Oil Capacity

18 L

18 L

18 L

Power

1100 W

1100 W

1100 W

Dimensions (wxlxh)

2500x1600x3000 mm

2700x2500x4800 mm

3800x2600x7000 mm

Weight

1380 kg

3750 kg

6800 kg







C2665 - Concrete Pipe Testing Machine, 400 kN Capacity, 220-240 V 50-60 Hz
C2665/110 - Concrete Pipe Testing Machine, 400 kN Capacity, 110 V 60 Hz
C2670 - Concrete Pipe Testing Machine, 600 kN Capacity, 220-240 V 50-60 Hz
C2670/110 - Concrete Pipe Testing Machine, 600 kN Capacity, 110 V 60 Hz
C2675 - Concrete Pipe Testing Machine, 1000 kN Capacity, 220-240 V 50-60 Hz
C2675/110 - Concrete Pipe Testing Machine, 1000 kN Capacity, 110 V 60 Hz
Concrete Pipe Testing Machines C2665 PROFIX6 Concrete Pipe Testing Machines
PROFIX6
