CYLINDER CAPPING FRAME

Product Code
59-CPF48125
Quantity in Stock
Conctact with us
Standards
EN 12390-1, 12390-3, 12504-1 | ASTM C31, C39, C42, C192, C617 | ASSTHO T23, T126

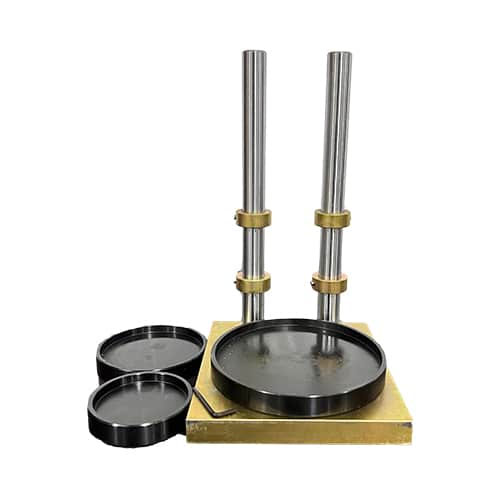

The Cylinder Capping Frame is used to ensure that the planned end surfaces are perpendicular to the axis of the cylinder during the coping process. The frame comprises vertical supports mounted on a steel base. Can be capped for dia150x300 mm, 160x320 mm and 6"x 12" cylinder molds with this unit.

Dimensions

200x200x320 mm

Weight (approx)

12 kg


C3190 - Cylinder Capping Frame

Standards: EN 12390-1, 12390-3, 12504-1 | ASTM C31, C39, C42, C192, C617 | ASSTHO T23, T126
