Standards
ASTM D2172 | AASHTO T164

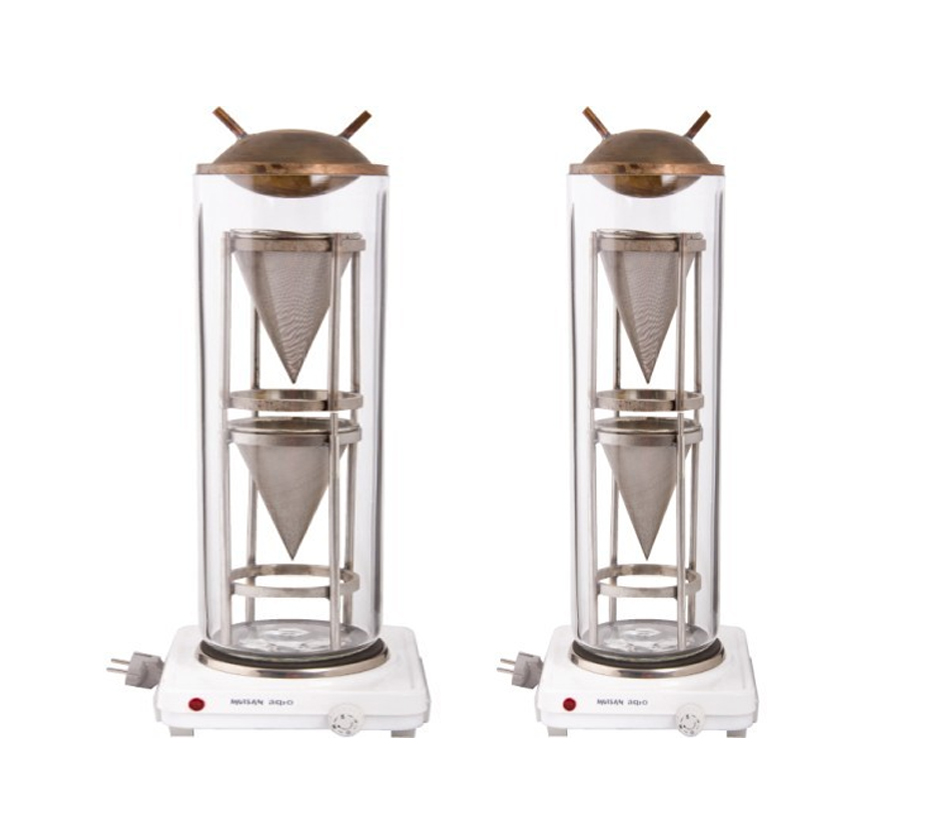

B1210 and B1215 Reflux Extractors are used for the quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples. The bitumen content is calculated by difference from the weight of extracted aggregates, moisture content and ash from an aliquot part of the extract. Two models available: 1000 and 4000 g capacity.
Reflux Extractors are supplied with;
• Cylindrical Glass Extractor Jar
• Stainless steel wire mesh cone
• Brass condenser
• Iron Wire Gauze
• Hot plate
• Filter paper
| B1210 - | Reflux Extraction Test Set 4000 g, 220-240 V 50/60 Hz |
| B1210/110 - | Reflux Extraction Test Set 4000 g, 110 V 60 Hz |
| B1215 - | Reflux Extraction Test Set 1000 g, 220-240 V 50/60 Hz |
| B1215/110 - | Reflux Extraction Test Set 1000 g, 110 V 60 Hz |
Standards: ASTM D2172 | AASHTO T164
Model
B1210
B1215
Dimensions
265x265x600 mm
150x150x600 mm
Weight (approx)
9 kg
4 kg
