Digital Point Load Test Apparatus

Category
Product Code
AG440
Quantity in Stock
qty
Price
Ask Price
Ask Price

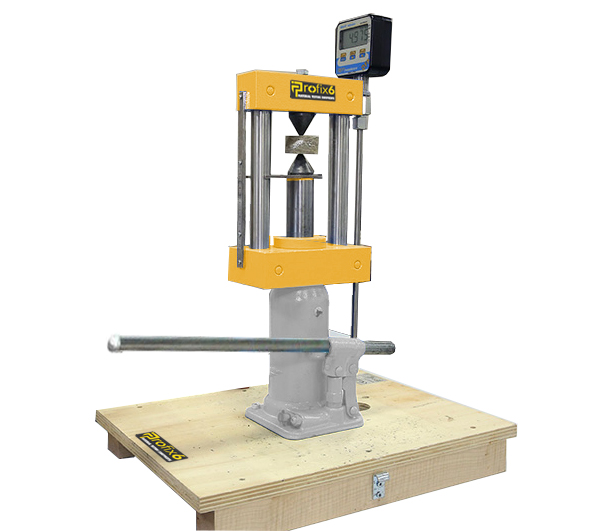

The Digital Point Load Test Apparatus is used for determining the strength values of a rock specimen, both in the field and in the laboratory. Consists of a 60 kN capacity load frame with an upper and lower conical platens, a digital readout unit, pressure tranducer and a hydraulic loading bottle jack. The frame is adjustable for testing of samples up to 102 mm diameter. A ruler assembled on the frame allows the direct measurement of the distance between the conical platens before and after the test. The compression load is measured by a pressure transducer connected to an advanced digital easily transportable wooden case.
SAFETY FEATURES
• Load Range : 0 - 60 kN
• Accuracy : ± 1%
• Load Readibility: 1 N
• Load measurement in both kN and MPa
• Distance between columns: 110 mm

Accessories

5 Tons

Display

Digital readout screen

Carrying Case

Type of land together with a complete set of wooden carrying case

Weight

60 kg

Dimension

400x700x600 mm

Power

220-240 V 50/60 Hz
