Ductility Testing Machine

Category
Product Code
B1160
Quantity in Stock
qty
Price
Ask Price
Ask Price

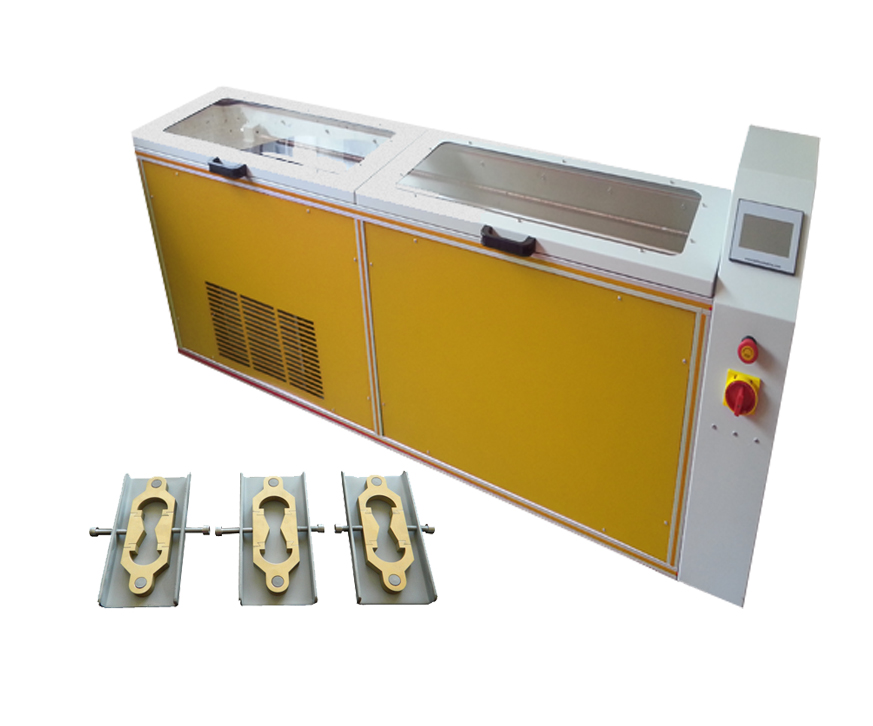

The Ductility Testing Machines determine ductility of formed asphalt or semi-solid bitumen by measuring the distance of elongation before reaching the breaking point of a briquette sample, which is pulled apart at a specific speed and temperature. The Internal tank is made of stainless steel. The bath is fitted with an immersion heater in order to obtain, the 25°C test temperature. Suitable for testing 3 samples simultaneously. Standard carriage stroke is 1500 mm. The machine consist of graduated scale, moulds and mould base plates. The ductility machine comprises speed control and water circulator to maintain the homogeneous water temperature.
The B1165 Ductility Testing Machine with Cooling Unit has the same specifications with B1160 Ductility Testing Machine but with an additional cooling unit and It is not possible to convert B1160 to B1165.

Speed

50 mm/min.

Carriage Stroke

1500 mm

Dimensions

320x1800x600 mm

Weight (approx)

90 kg

Power

350 W






B1160 - Ductility Testing Machine, 220-240 V 50-60 Hz
B1160/110 - Ductility Testing Machine, 110 V 60 Hz
B1165 - Ductility Testing Machine with Cooling Unit, 220-240 V 50-60 Hz
B1165/110 - Ductility Testing Machine with Cooling Unit, 110 V 60 Hz
B1168 - Ductility Mould and Base Plate
