Semi-Automatic Digital Bitumen Penetrometer

Category
Product Code
B1170
Quantity in Stock
qty
Price
Ask Price
Ask Price

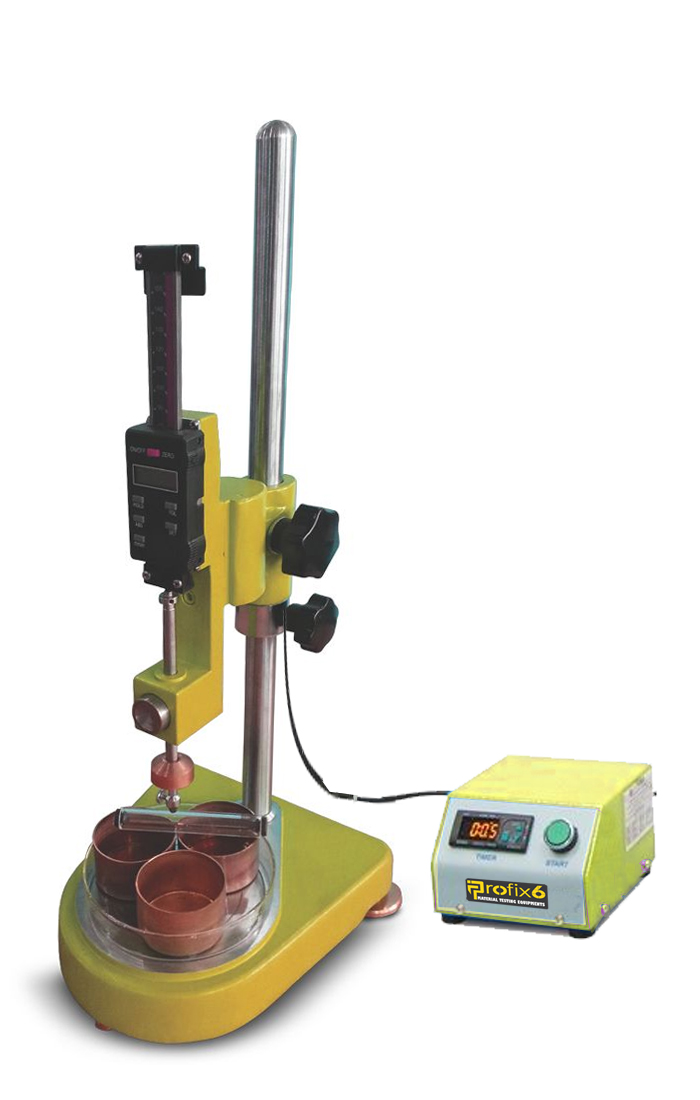

The Semi-Automatic Digital Bitumen Penetrometer is used to determine the penetration of bituminous samples under constant load, time and temperature. The bitumen penetrometer is consists of steel base, leveling screws, digital penetration measurement gauge 0.01 mm precision, release button, automatic zeroing and spirit level. Semi-Automatic Digital Bitumen Penetrometer is supplied with semi automatic timer unit. Penetration timer unit is used to release the plunger fitted with the needle to start the 5 seconds test. Thermometers required for the test should be ordered separately.
The Semi-Automatic Digital Penetrometer is supplied with;
• Penetration Needle, 2,5 g, 1 piece
• Transfer Dish
• Sample Cup Ø 55x35 mm, 6 pieces, stainless steel

Dimensions

200x300x480 mm

Weight (approx)

15 kg




B1170 - Semi-Automatic Digital Bitumen Penetrometer, 220-240 V 50-60 Hz
B1170/110 - Semi-Automatic Digital Bitumen Penetrometer, 110 V 60 Hz
B1175 - Penetration Needle, 2,5 g
