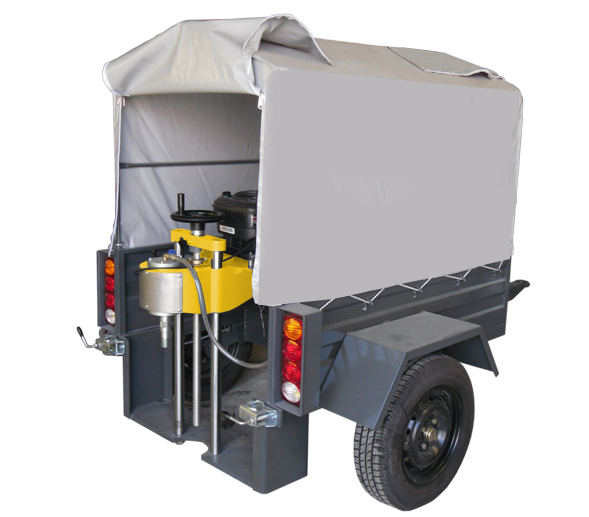

Pavement Core Drilling Machine on Trailer
Pavement Core Drilling Machine on Trailer is installed in on a trailer. 100 litre water tank provides continuous lubrication during drilling. The two-wheeler taut liner trailer is fully equipped with brake lamps, hazard flashers, retroreflectors conforming to road traffic regulations. The trailer is produced with a space to be used for storing the core samples. The two fixing legs are robustly designed for improved stabilization.
Core Drilling Machine is produced to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 Hp 4 stroke high quality petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation. Coring Bits should be ordered separately. Coring Bits should be ordered separately.
B1345 - | Pavement Core Drilling Machine on Trailer |
B1346 - | Coring Bit for Asphalt 75 mm dia |
B1347 - | Coring Bit for Asphalt 100 mm dia |
B1348 - | Coring Bit for Asphalt 150 mm dia |
B1349 - | Coring Bit for Asphalt 200 mm dia |
Dimensions
1600x2500x1900 mm
Weight (approx)
370 kg
Power
6.5 Hp
