SPECIFIC GRAVITY BENCH SET

Category
Product Code
48-SG457620
Quantity in Stock
Conctact with us
Standards
EN 1097-6, 12390-7

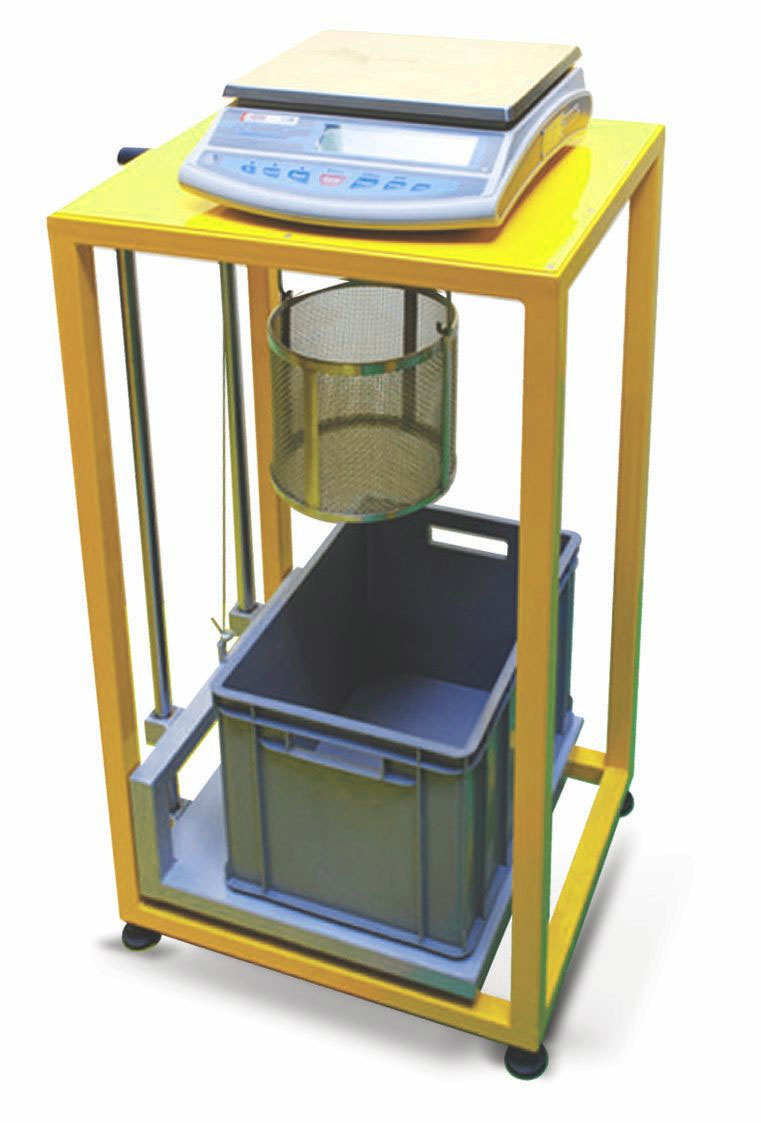

The Specific gravity bench test set is used for specific gravity determination of aggregates and fresh concretes. The lower part of the frame incorporates a moving platform, which carries the water tank allowing the test specimens to be weighed in both air and water.

The balance is not included in the test set and must be ordered separately.

The Specific Gravity Test Set is supplied complete with;
• Specific Gravity Frame
• Plastic Water Tank
• Cradle for Hardened Concrete Specimens
• Density Basket, 200 mm dia x 200 mm deep, 3.5 mm mesh

Dimensions 600x500x1100 mm
Weight (approx) 28 kg
Product Model Product Name
48-SG457620 Specific Gravity Test Set
48-SG457620/01 Specific Gravity Frame
48-SC457600/02 Plastic Water Tank 55 Liter
48-SC457600/03 Cradle for Hardened Concrete Specimens
48-SC457600/04 Density Basket, 200 mm dia x 200 mm deep, 3.5 mm mesh

Standards: EN 1097-6, 12390-7

Specific Gravity Bench Set The Specific Gravity Bench Test Set is used for specific gravity determination of aggregates and fresh concretes. 48-SG457620 PROFIX6 Specific Gravity Bench Set
