Manual Marshall Compaction Assembly

Category
Product Code
B1130
Quantity in Stock
qty
Price
Ask Price
Ask Price

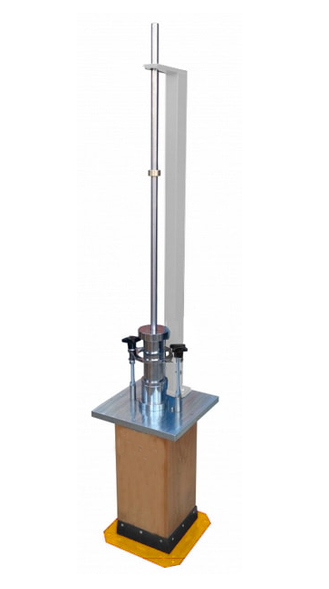

The B1130 and B1140 Manual Marshall Compaction Assembly are used to prepare Marshall specimens manually. The Compaction Assemblies consist of a Marshall Compaction Hammer and a Wooden Compaction Pedestal. The Pedestal supplied complete with steel plate, mould holder and hammer guide.
B1130 and B1140 Marshall Steel Blocks are used for initial heating of the foot of compaction hammer should be ordered separately.
The Manual Marshall Compaction Assemblie are supplied complete with;
• Wooden Compaction Pedestal
• Hammer

Product Code

Dimensions

Weight (Approx)

B1130

350x400x1700 mm

55 kg

B1140

350x400x1700 mm

62 kg





B1130 - Manual Marshall Compaction Assembly, 4”, ASTM
B1140 - Manual Marshall Compaction Assembly, 6”, ASTM
B1126 - Marshall Mould, Diameter:102 mm and Height 50 mm
B1127 - Marshall Mould, Diameter:154 mm and Height 50 mm
