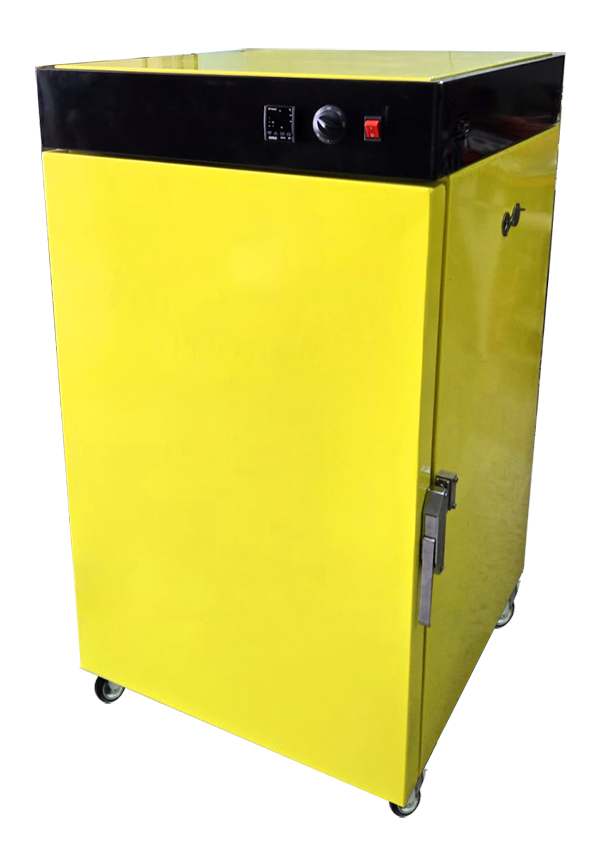

NATURAL CONVECTION LABORATORY DRYING OVENS
The Laboratory drying ovens have been designed for drying asphalt, soil, rock, concrete, aggregate or similar materials. Drying ovens capacities are manufacturing 55, 120, 250, 500 and 750 liters.
Natural Convection (Air Circulation) Laboratory Drying Ovens temperature range are from ambient to 200°C with a precision of 3-4 ºC.
The all model ovens interior is manufactured from stainless steel and the exterior is robustly constructed from sheet steel finished in powder coated paint. Laboratory Ovens are fitted with direct reading digital control unit and equipped with an analogue over temperature protection thermostat.
Natural Convection (Air Circulation) Laboratory Drying Ovens
Natural Convection (Air Circulation) Laboratory Drying Ovens rely on temperature differences within the oven to transfer heat to samples.
Natural Convection ovens are designed for drying, baking, conditioning and moisture determination.
The interior is made from stainless steel and the exterior is robustly constructed from sheet steel finished in powder coated paint.
Temperature range is from ambient to 200°C with precision of 3-4 ºC. Control System is LCD Touch screen PID Controller.
The Ovensare equipped of a dual safety thermostat with higher thermic threshold to prevent accidental over-temperatures and to ensure safe working conditions.
The Ovens are supplied complete with shelves easily removable and that can be positioned at various heights.
| Product Model | 48-LO4580-55N | 48-LO4580-120N | 48-LO4580-250N | 48-LO4580-500N | 48-LO4580-750N |
|---|---|---|---|---|---|
| Capacity | 55 Liters | 120 Liters | 250 Liters | 500 Liters | 750 Liters |
| Temperature Operating Range | Ambient Temperature / +200°C | Ambient Temperature / +200°C | Ambient Temperature / +200°C | Ambient Temperature / +200°C | Ambient Temperature / +200°C |
| Temperature Adjustment and Reading Accuracy | ± 3°C | ± 3 °C | ± 3 °C | ± 4 °C | ± 4 °C |
| Internal Dimensions | 380x380x380 mm | 570x440x490 mm | 570x560x800 mm | 570x800x1100 mm | 570x900x1500 mm |
| External Dimensions | 550x620x750 mm | 800x720x850 mm | 800x850x1050 mm | 800x1100x1400 mm | 800x1270x1850 mm |
| Shelves | 2 | 2 | 3 | 4 | 5 |
| Weight (approx) | 25 | 70 kg | 105 kg | 140 kg | 170 Liters |
| Power | 1100 W | 1300 W | 2300 W | 3500 W | 4500 W |
| Product Model | Product Name |
|---|---|
| 48-LO4580-55N | Laboratory Drying Ovens, 55 Liter Capacity, Natural Convection - 220-240 V 50/60 Hz |
| 48-LO4580-120N | Laboratory Drying Ovens, 120 Liter Capacity, Natural Convection - 220-240 V 50/60 Hz |
| 48-LO4580-250N | Laboratory Drying Ovens, 250 Liter Capacity, Natural Convection - 220-240 V 50/60 Hz |
| 48-LO4580-500N | Laboratory Drying Ovens, 500 Liter Capacity, Natural Convection - 220-240 V 50/60 Hz |
| 48-LO4570-750N | Laboratory Drying Ovens, 750 Liter Capacity, Natural Convection - 380 V 50 Hz |
Standards: EN 932-5, EN 1097-5, EN 12697-1 Clause C, EN 13108, EN 196-2, EN 196-21, EN 459-2 | ASTM C 127, C136, D558, D559, D560, D698, D1557, D1559 | BS 1924:1, BS 1377:1 | UNE 103300
